package com.bogotobogo.android.swap3d;
import android.app.Activity;
import android.os.Bundle;
import android.widget.ListView;
import android.widget.ArrayAdapter;
import android.widget.AdapterView;
import android.widget.ImageView;
import android.view.View;
import android.view.ViewGroup;
import android.view.animation.Animation;
import android.view.animation.AccelerateInterpolator;
import android.view.animation.DecelerateInterpolator;
public class Swap3D extends Activity implements
AdapterView.OnItemClickListener, View.OnClickListener {
private ListView mPhotosList;
private ViewGroup mContainer;
private ImageView mImageView;
// Names of the photos we show in the list
private static final String[] PHOTOS_NAMES = new String[] {
"Brasil",
"Arctic",
"Antarctica",
"Mongolia",
"Madagascar"
};
// Resource identifiers for the photos we want to display
private static final int[] PHOTOS_RESOURCES = new int[] {
R.drawable.p1,
R.drawable.p2,
R.drawable.p3,
R.drawable.p4,
R.drawable.p5
};
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
mPhotosList = (ListView) findViewById(android.R.id.list);
mImageView = (ImageView) findViewById(R.id.picture);
mContainer = (ViewGroup) findViewById(R.id.container);
// Prepare the ListView
final ArrayAdapter adapter = new ArrayAdapter(this,
android.R.layout.simple_list_item_1, PHOTOS_NAMES);
mPhotosList.setAdapter(adapter);
mPhotosList.setOnItemClickListener(this);
// Prepare the ImageView
mImageView.setClickable(true);
mImageView.setFocusable(true);
mImageView.setOnClickListener(this);
// Since we are caching large views, we want to keep their cache
// between each animation
mContainer.setPersistentDrawingCache(ViewGroup.PERSISTENT_ANIMATION_CACHE);
}
/**
* Setup a new 3D rotation on the container view.
*
* @param position the item that was clicked to show a picture, or -1 to show the list
* @param start the start angle at which the rotation must begin
* @param end the end angle of the rotation
*/
private void applyRotation(int position, float start, float end) {
// Find the center of the container
final float centerX = mContainer.getWidth() / 2.0f;
final float centerY = mContainer.getHeight() / 2.0f;
// Create a new 3D rotation with the supplied parameter
// The animation listener is used to trigger the next animation
final Rotate rotation =
new Rotate(start, end, centerX, centerY, 310.0f, true);
rotation.setDuration(500);
rotation.setFillAfter(true);
rotation.setInterpolator(new AccelerateInterpolator());
rotation.setAnimationListener(new DisplayNextView(position));
mContainer.startAnimation(rotation);
}
public void onItemClick(AdapterView parent, View v, int position, long id) {
// Pre-load the image then start the animation
mImageView.setImageResource(PHOTOS_RESOURCES[position]);
applyRotation(position, 0, 90);
}
public void onClick(View v) {
applyRotation(-1, 180, 90);
}
/**
* This class listens for the end of the first half of the animation.
* It then posts a new action that effectively swaps the views when the container
* is rotated 90 degrees and thus invisible.
*/
private final class DisplayNextView implements Animation.AnimationListener {
private final int mPosition;
private DisplayNextView(int position) {
mPosition = position;
}
public void onAnimationStart(Animation animation) {
}
public void onAnimationEnd(Animation animation) {
mContainer.post(new SwapViews(mPosition));
}
public void onAnimationRepeat(Animation animation) {
}
}
/**
* This class is responsible for swapping the views and start the second
* half of the animation.
*/
private final class SwapViews implements Runnable {
private final int mPosition;
public SwapViews(int position) {
mPosition = position;
}
public void run() {
final float centerX = mContainer.getWidth() / 2.0f;
final float centerY = mContainer.getHeight() / 2.0f;
Rotate rotation;
if (mPosition > -1) {
mPhotosList.setVisibility(View.GONE);
mImageView.setVisibility(View.VISIBLE);
mImageView.requestFocus();
rotation = new Rotate(90, 180, centerX, centerY, 310.0f, false);
} else {
mImageView.setVisibility(View.GONE);
mPhotosList.setVisibility(View.VISIBLE);
mPhotosList.requestFocus();
rotation = new Rotate(90, 0, centerX, centerY, 310.0f, false);
}
rotation.setDuration(5000);
rotation.setFillAfter(true);
rotation.setInterpolator(new DecelerateInterpolator());
mContainer.startAnimation(rotation);
}
}
}package com.bogotobogo.android.swap3d;
import android.view.animation.Animation;
import android.view.animation.Transformation;
import android.graphics.Camera;
import android.graphics.Matrix;
public class Rotate extends Animation {
private final float mFromDegrees;
private final float mToDegrees;
private final float mCenterX;
private final float mCenterY;
private final float mDepthZ;
private final boolean mReverse;
private Camera mCamera;
/**
* Creates a new 3D rotation on the Y axis. The rotation is defined by its
* start angle and its end angle. Both angles are in degrees. The rotation
* is performed around a center point on the 2D space, definied by a pair
* of X and Y coordinates, called centerX and centerY. When the animation
* starts, a translation on the Z axis (depth) is performed. The length
* of the translation can be specified, as well as whether the translation
* should be reversed in time.
*
* @param fromDegrees the start angle of the 3D rotation
* @param toDegrees the end angle of the 3D rotation
* @param centerX the X center of the 3D rotation
* @param centerY the Y center of the 3D rotation
* @param reverse true if the translation should be reversed, false otherwise
*/
public Rotate(float fromDegrees, float toDegrees,
float centerX, float centerY, float depthZ, boolean reverse) {
mFromDegrees = fromDegrees;
mToDegrees = toDegrees;
mCenterX = centerX;
mCenterY = centerY;
mDepthZ = depthZ;
mReverse = reverse;
}
@Override
public void initialize(int width, int height, int parentWidth, int parentHeight) {
super.initialize(width, height, parentWidth, parentHeight);
mCamera = new Camera();
}
@Override
protected void applyTransformation(float interpolatedTime, Transformation t) {
final float fromDegrees = mFromDegrees;
float degrees = fromDegrees + ((mToDegrees - fromDegrees) * interpolatedTime);
final float centerX = mCenterX;
final float centerY = mCenterY;
final Camera camera = mCamera;
final Matrix matrix = t.getMatrix();
camera.save();
if (mReverse) {
camera.translate(0.0f, 0.0f, mDepthZ * interpolatedTime);
} else {
camera.translate(0.0f, 0.0f, mDepthZ * (1.0f - interpolatedTime));
}
camera.rotateY(degrees);
camera.getMatrix(matrix);
camera.restore();
matrix.preTranslate(-centerX, -centerY);
matrix.postTranslate(centerX, centerY);
}
}<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/container"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<ListView
android:id="@android:id/list"
android:persistentDrawingCache="animation|scrolling"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layoutAnimation="@anim/layout_bottom_to_top_slide" />
<ImageView
android:id="@+id/picture"
android:scaleType="fitCenter"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:visibility="gone" />
</FrameLayout><?xml version="1.0" encoding="utf-8"?>
<layoutAnimation xmlns:android="http://schemas.android.com/apk/res/android"
android:delay="30%"
android:animationOrder="reverse"
android:animation="@anim/slide_right" />and /res/anim/slide_right.xml:<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
android:interpolator="@android:anim/accelerate_interpolator">
<translate android:fromXDelta="-100%p" android:toXDelta="0"
android:duration="@android:integer/config_shortAnimTime" />
</set>
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android=
"http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<Button
android:id="@+id/btn_animate"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="Start Animation"/>
<ListView
android:id="@+id/list_view_id"
android:persistentDrawingCache=
"animation|scrolling"
android:layout_width="fill_parent"
android:layout_height="fill_parent"/>
</LinearLayout>The layout has two parts: the first is the button named btn_animate to animate a view, and the second part is the ListView, which is named list_view_id.package com.bogotobogo.viewanimation;
import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
public class ViewAnimation extends Activity
{
@Override
public void onCreate(Bundle savedInstanceState){
super.onCreate(savedInstanceState);
setContentView(R.layout.list_layout);
setupListView();
this.setupButton();
}
private void setupListView(){
String[] listItems = new String[] {
"Item 1", "Item 2", "Item 3",
"Item 4", "Item 5", "Item 6",
};
ArrayAdapter listItemAdapter =
new ArrayAdapter(this
,android.R.layout.simple_list_item_1
,listItems);
ListView lv = (ListView)this.findViewById(R.id.list_view_id);
lv.setAdapter(listItemAdapter);
}
private void setupButton(){
Button b = (Button)this.findViewById(R.id.btn_animate);
b.setOnClickListener(
new Button.OnClickListener(){
public void onClick(View v) {
animateListView();
}
});
}
private void animateListView() {
ListView lv = (ListView)this.findViewById(R.id.list_view_id);
ViewAnim animation = new ViewAnim();
lv.startAnimation(animation);
}

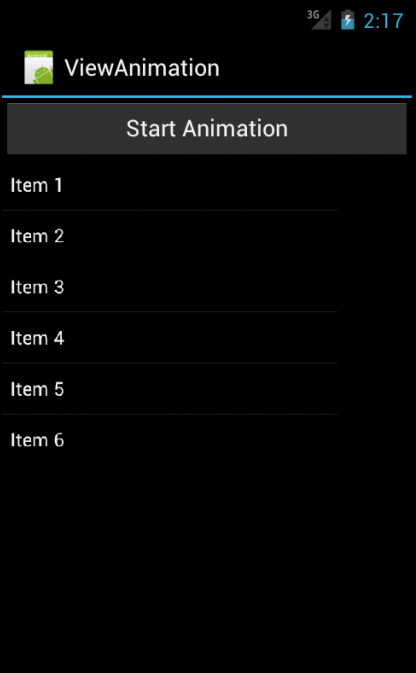

}We have loaded the view and set up the ListView to contain six text items. We've set up the button in such a way that it would call animate() when clicked. <activity android:name=".ViewAnimation"
android:label="@string/app_name">We want to add animation to the ListView. So, we need a class that derives from android.view.animation.Animation. We then need to override the applyTransformation method to modify the transformation matrix. package com.bogotobogo.viewanimation;
import android.graphics.Matrix;
import android.view.animation.Animation;
import android.view.animation.LinearInterpolator;
import android.view.animation.Transformation;
public class ViewAnim extends Animation
{
public void ViewAnimation2(){}
@Override
public void initialize(int width, int height, int parentWidth,
int parentHeight) {
super.initialize(width, height, parentWidth, parentHeight);
setDuration(2500);
setFillAfter(true);
setInterpolator(new LinearInterpolator());
}
@Override
protected void applyTransformation(float interpolatedTime, Transformation t){
final Matrix matrix = t.getMatrix();
matrix.setScale(interpolatedTime, interpolatedTime);
}
}Once we have the ViewAnim class, we can do:ListView lv = (ListView)this.findViewById(R.id.list_view_id); ViewAnim animation = new ViewAnim();as in the animateListView() method.
matrix.setScale(interpolatedTime, interpolatedTime);Because the interpolatedTime goes between 0 and 1, we can use that value directly as the scaling factor. So when we start the animation, the scaling factor is 0 in both x and y directions.
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<ListView
android:id="@+id/list_view_id"
android:persistentDrawingCache="animation|scrolling"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:layoutAnimation="@anim/list_layout_controller" />
</LinearLayout>The file shows a simple LinearLayout with a single ListView in it. However, we should mention one point about the ListView definition.package com.bogotobogo.layoutanimation;
import android.app.Activity;
import android.os.Bundle;
import android.widget.ArrayAdapter;
import android.widget.ListView;
public class LayoutAnimation extends Activity
{
@Override
public void onCreate(Bundle savedInstanceState){
super.onCreate(savedInstanceState);
setContentView(R.layout.list_layout);
setupListView();
}
private void setupListView(){
String[] listItems = new String[] {
"Item 1", "Item 2", "Item 3",
"Item 4", "Item 5", "Item 6",
};
ArrayAdapter listItemAdapter =
new ArrayAdapter(this
,android.R.layout.simple_list_item_1
,listItems);
ListView lv = (ListView)this.findViewById(R.id.list_view_id);
lv.setAdapter(listItemAdapter);
}
}First, we loads the view based on the generated layout ID R.layout.list_layoutListView lv = (ListView)this.findViewById(R.id.list_view_id);Our goal is to take the ListView from this layout and populate it with six text items. These items are loaded up into an array.
String[] listItems = new String[] {
"Item 1", "Item 2", "Item 3",
"Item 4", "Item 5", "Item 6",
};We'll need to set a data adapter into a ListView so that the ListView can show those items.lv.setAdapter(listItemAdapter);To create the necessary adapter, we'll need to specify how each item will be laid out when the list is displayed. We specify the layout by using a predefined layout in the base Android framework. This layout is specified as
android.R.layout.simple_list_item_1However, as with any other activity invocation, we'll need to register the LayoutAnimationActivity in the AndroidManifest.xml file for the preceding intent invocation to work:
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bogotobogo.layoutanimation"
android:versionCode="1"
android:versionName="1.0">
<application android:icon="@drawable/icon" android:label="@string/app_name">
<activity android:name=".LayoutAnimation"
android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
<uses-sdk android:minSdkVersion="4" />
</manifest> We need another XML file that acts as a mediator between itself and the animation set. Here is the mediator XML file:<layoutAnimation xmlns:android="http://schemas.android.com/apk/res/android"
android:delay="30%"
android:animationOrder="reverse"
android:animation="@anim/alpha" />The mediator file, in this case, is for the transparency animation as we can see it from the line: android:animation="@anim/alpha" />
<alpha xmlns:android="http://schemas.android.com/apk/res/android"
android:interpolator="@android:anim/accelerate_interpolator"
android:fromAlpha="0.0" android:toAlpha="1.0" android:duration="5000" /><rotate xmlns:android="http://schemas.android.com/apk/res/android"
android:interpolator="@android:anim/accelerate_interpolator"
android:fromDegrees="0.0"
android:toDegrees="360"
android:pivotX="50%"
android:pivotY="50%"
android:duration="500" /><set xmlns:android="http://schemas.android.com/apk/res/android"
android:interpolator="@android:anim/accelerate_interpolator">
<scale
android:fromXScale="1"
android:toXScale="1"
android:fromYScale="0.1"
android:toYScale="1.0"
android:duration="500"
android:pivotX="50%"
android:pivotY="50%"
android:startOffset="100" />
</set><set xmlns:android="http://schemas.android.com/apk/res/android"
android:interpolator="@android:anim/accelerate_interpolator">
<translate android:fromYDelta="-100%" android:toYDelta="0"
android:duration="500" />
<alpha android:fromAlpha="0.0" android:toAlpha="1.0"
android:duration="500" />
</set>Here is a snapshot during the transparency animation.
d1.gif:d2.gif:
d3.gif:
d4.gif:
d5.gif:
d6.gif:d7.gif:
d8.gif:
d9.gif:
d10.gif:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android=
"http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<TextView android:id="@+id/textViewId1"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text=
"Frame By Frame Animation of 10 Dukes"/>
<Button
android:id="@+id/startFAButtonId"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="Start Duke Animation"
/>
<ImageView
android:id="@+id/animationImage"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
</LinearLayout>The first control is the text control which is a simple TextView. Then the next control is a button to start and stop the animation. The last view is the ImageView, where we will do the animation. So, now we have the layout. <animation-list xmlns:android= "http://schemas.android.com/apk/res/android" android:oneshot="false"> <item android:drawable="@drawable/d1" android:duration="50" /> <item android:drawable="@drawable/d2" android:duration="50" /> <item android:drawable="@drawable/d3" android:duration="50" /> <item android:drawable="@drawable/d4" android:duration="50" /> <item android:drawable="@drawable/d5" android:duration="50" /> <item android:drawable="@drawable/d6" android:duration="50" /> <item android:drawable="@drawable/d7" android:duration="50" /> <item android:drawable="@drawable/d8" android:duration="50" /> <item android:drawable="@drawable/d9" android:duration="50" /> <item android:drawable="@drawable/d10" android:duration="50" /> </animation-list>
package com.bogotobogo.frameanimation;
import android.app.Activity;
import android.graphics.drawable.AnimationDrawable;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
public class FrameAnimation extends Activity {
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.frame_animations_layout);
this.setupButton();
}
private void setupButton() {
Button b = (Button)this.findViewById(R.id.startFAButtonId);
b.setOnClickListener(
new Button.OnClickListener() {
public void onClick(View v) {
parentButtonClicked(v);
}
});
}
private void parentButtonClicked(View v) {
animate();
}
private void animate() {
ImageView imgView = (ImageView)findViewById(R.id.animationImage);
imgView.setVisibility(ImageView.VISIBLE);
imgView.setBackgroundResource(R.drawable.frame_animation);
AnimationDrawable frameAnimation =
(AnimationDrawable) imgView.getBackground();
if (frameAnimation.isRunning()) {
frameAnimation.stop();
}
else {
frameAnimation.stop();
frameAnimation.start();
}
}
}Each frame points to one of the duke images we have assembled through their resource IDs. The animation-list tag gets converted into an AnimationDrawable object representing the collection of images. We will then need to set the Drawable as a background resource for out ImageView.ImageView imgView = (ImageView)findViewById(R.id.animationImage);
imgView.setBackgroundResource(R.drawable.frame_animation);With this code, Android knows that the resource ID R.drawable.frame_animation is an XML resource and accordingly constructs a AnimationDrawable Java object for it before setting it as the background. Once this is set, we can access this AnimationDrawable object by doing a "get" on the view object:AnimationDrawable frameAnimation =
(AnimationDrawable) imgView.getBackground();Once we have the AnimationDrawable, we can use start() and stop() methods of this object to start and stop the animation.
<!-- Dummy item to prevent AutoCompleteTextView from receiving focus -->
<LinearLayout
android:focusable="true" android:focusableInTouchMode="true"
android:layout_width="0px" android:layout_height="0px"/>
<!-- :nextFocusUp and :nextFocusLeft have been set to the id of this component
to prevent the dummy from receiving focus again -->
<AutoCompleteTextView android:id="@+id/text"
android:layout_width="fill_parent" android:layout_height="wrap_content"
android:nextFocusUp="@+id/text" android:nextFocusLeft="@+id/text"/>
